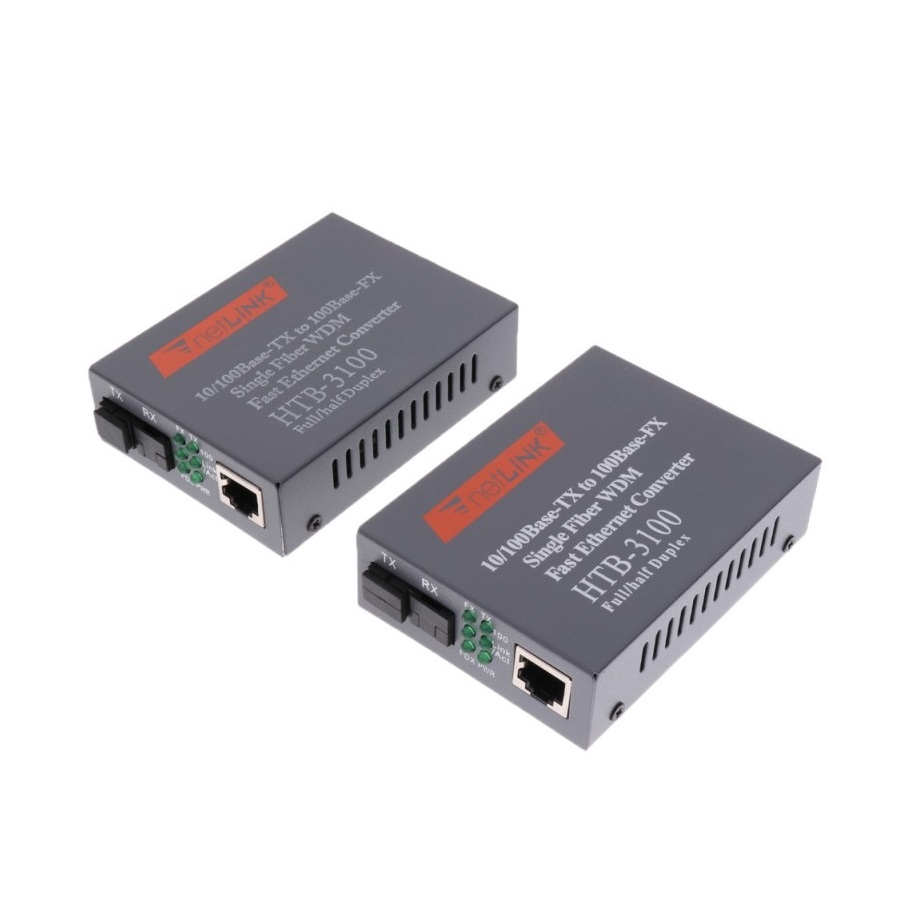

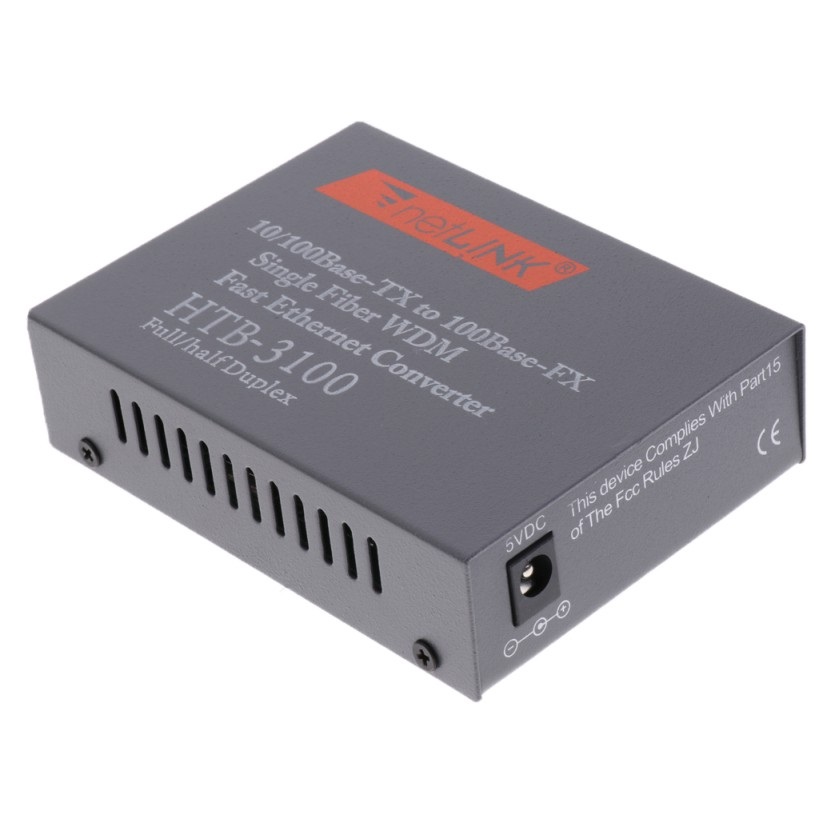

Ethernet Media Converter netLINK (HTB-3100) 100Mbps

$21.00 $19.00

HTB-3100 A+B 10/100Mbps Fiber Optical Transceiver Fiber Media Converter 25Km

Descriptions
- 1 RJ45 electrical port and 1 single-fiber SC optical port to achieve photoelectric signal conversion between twisted pair and optical fiber.
- Only a single core fiber can complete the signal transmission of one way, and double the fiber to increase the data transmission capacity of the fiber by a factor of two.
- Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standard.
- Has 10M/100M self-adaptive ability.
- The electrical port can adapt the direct line/cross line connection mode.

Features
- Supports full-duplex/half-duplex mode of operation.
- Support IEEE802.3X full-duplex flow control and half-duplex back pressure flow control.
- Support to prevent broadcast storm function;
- Support for 1916 Byte jumbo frames (optional).
- Built-in lightning protection circuit can greatly reduce the damage caused by lightning induction.
- Twisted pair cables are up to 100 meters long; single mode fibers are up to 100 kilometers long.

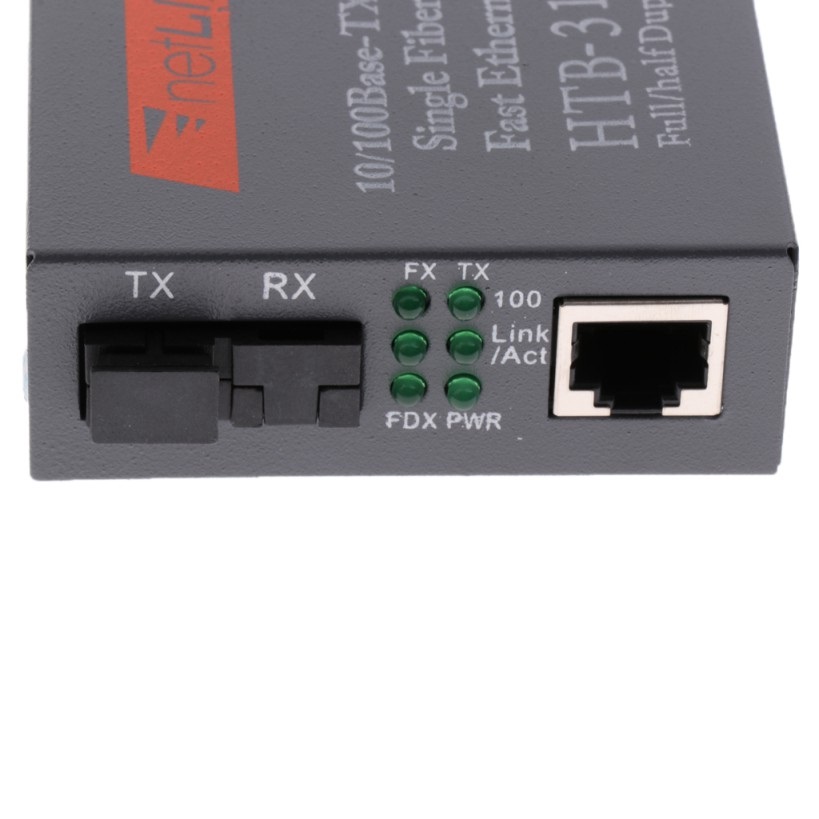

- There are 6 LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; it is easy to monitor the working status of the transceiver and determine the cause of the fault.

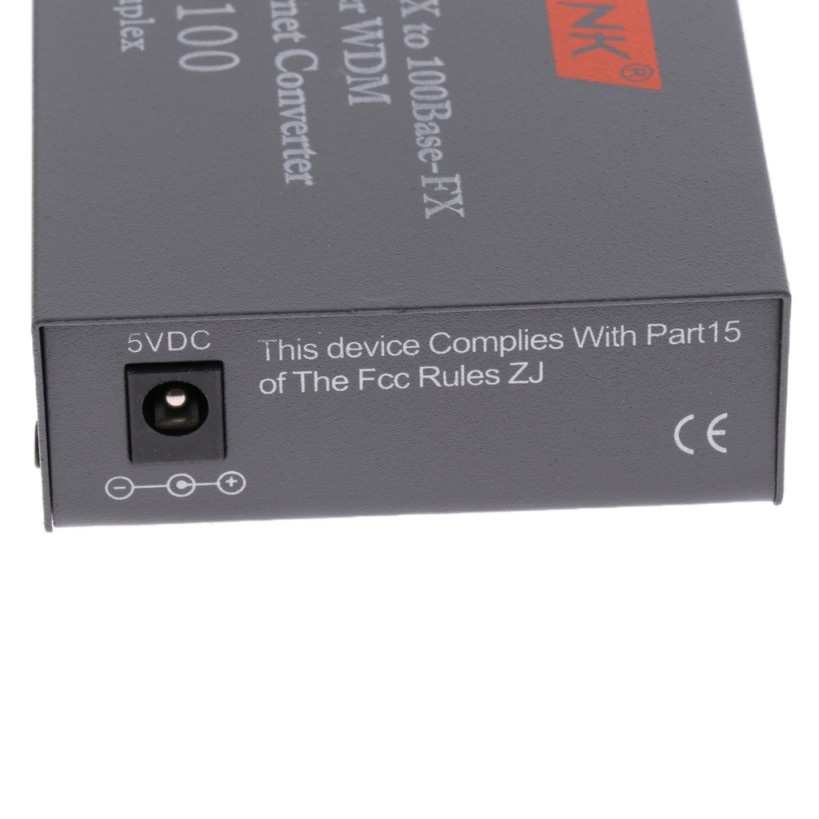

- There are two types of external, built-in power: AC100 ~ 265V / DC5V switching power supply.

Package Contents
- 1x Ethernet Media Converter
- 1x Power Adapter
- 1x User Manual

Product Code : FMC201
